Sail shape adjustment determines whether a boat accelerates, heels excessively, or fights the helm.

For most sailors, the search starts after the boat feels slow. As conditions change, it’s not obvious which control to touch first.

To simplify that moment, this guide explains sail shape through two core variables that matter on the water: draft depth and draft position.

Along the way, you’ll learn how to read trim cues straight from the sail, and correct issues using sail controls found on most cruising monohulls and catamarans.

Sail Shape Is Controlled by Depth and Position

Every sail is a flexible wing. If you want it to behave like a wing, you tune two things:

• Depth: How curved the sail is (how “full” it looks)
• Position: Where that deepest point sits from the luff to the leech

Depth is your “power setting.” Position is your “flow quality setting.” Together, they determine speed, heel, and helm pressure.

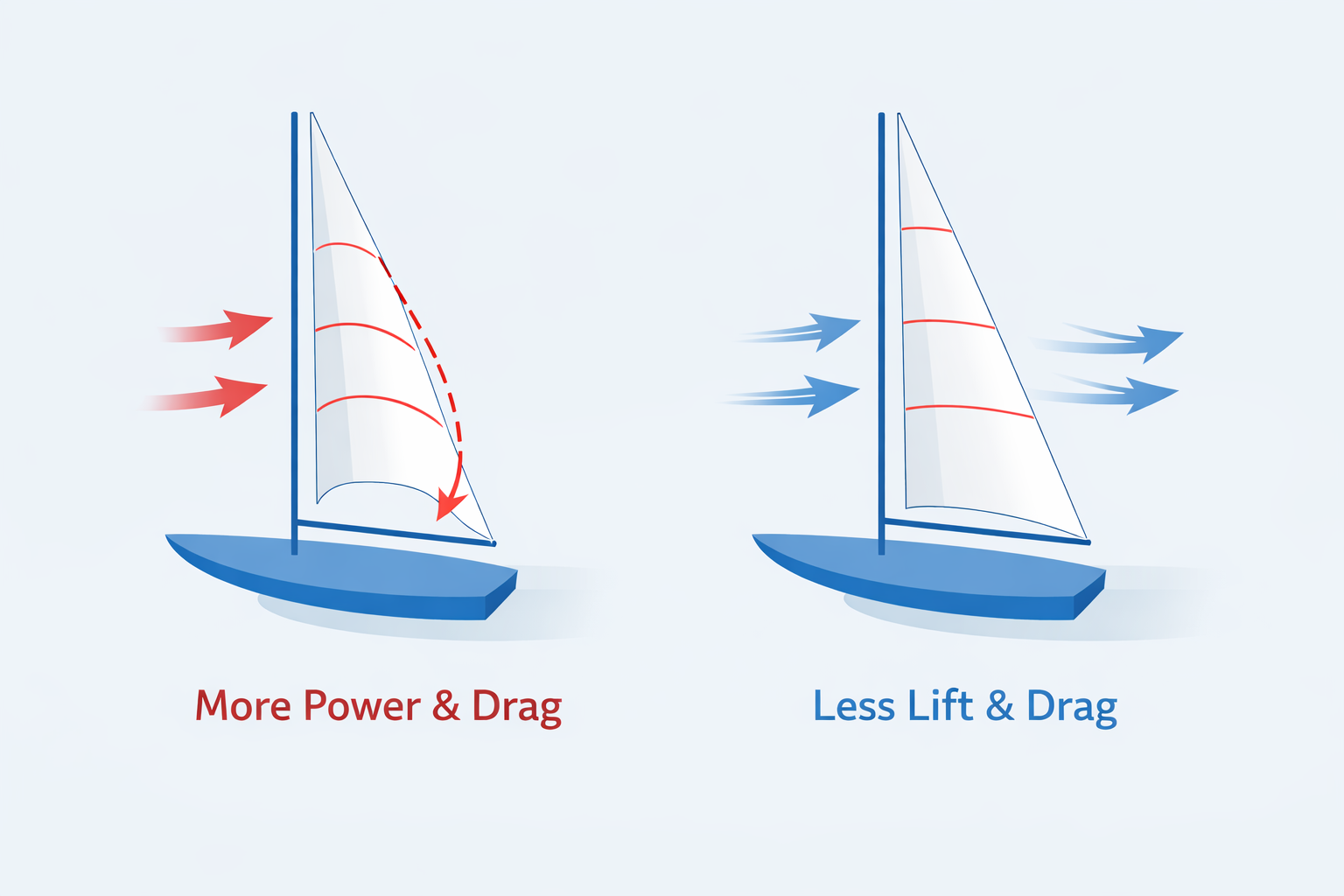

Draft Depth Controls Power and Drag

A deep sail produces more lift and more drag. That force increases the heel and rudder load. A flatter sail reduces both lift and drag, which steadies the boat and lightens the helm.

Think of depth like gears in a car.

In light air or short chop, added depth helps airflow stay attached and keeps the boat moving. In stronger breeze or flatter water, a flatter sail prevents drag from slowing controls down.

As a quick cue, watch acceleration after a tack. When the boat struggles in light air, add depth. When the boat heels early and the helm loads up, flatten.

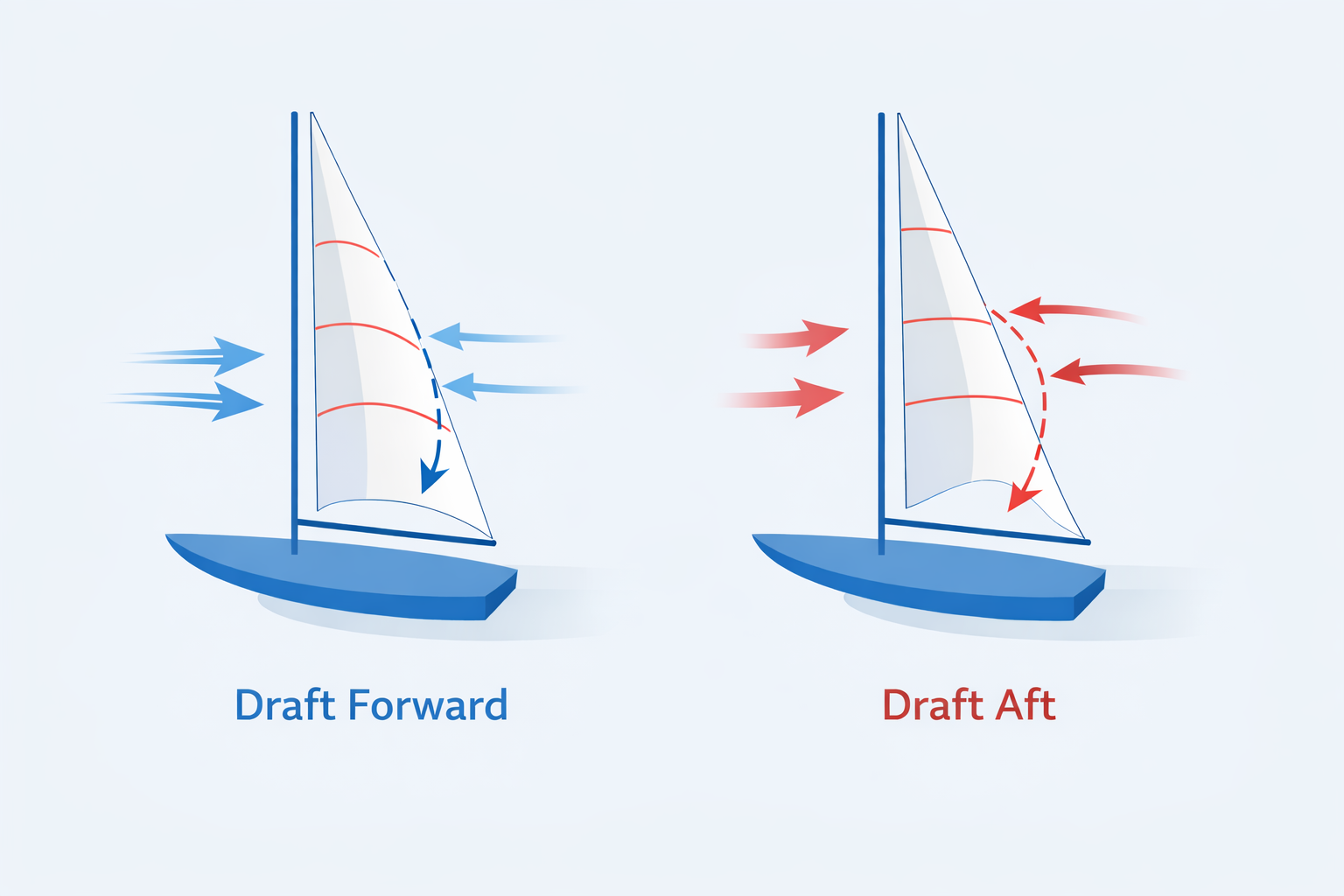

Draft Position Controls Airflow and Balance

When the draft sits forward, the sail presents a rounder entry at the luff. That shape helps air stay attached and supports pointing upwind.

When the draft shifts aft, force increases, but drag and weather helm often follow.

In many cases, a sail with aft draft feels powerful yet slow. The rudder works harder to compensate, and the speed drops.

This becomes more noticeable as the apparent wind moves forward. Upwind trim relies on keeping draft forward so airflow stays smooth along the sail.

How Sail Shape Changes Across Points of Sail

As heading changes, sail trim needs to change too. Each course asks the sail to perform different work.

Upwind Sailing

• Draft position stays forward at roughly 35–45% back from the luff
• Draft depth remains moderate, increasing slightly in waves
• The sail relies mainly on lift rather than drag
• Poor acceleration after a tack usually means insufficient depth, or the draft has shifted aft

Reaching

• Draft position can move slightly aft compared to upwind trim
• Depth often increases to maintain pull as apparent wind shifts aft
• Excessive heel usually signals too much depth rather than the sheet angle

Downwind Sailing

• Draft position moves closer to the middle of the sail
• Added depth supports drag-based movement while the sail stays stable
• As speed builds, apparent wind shifts forward, and trim needs frequent adjustment
• Collapse near the top of the sail points to twist or angle issues

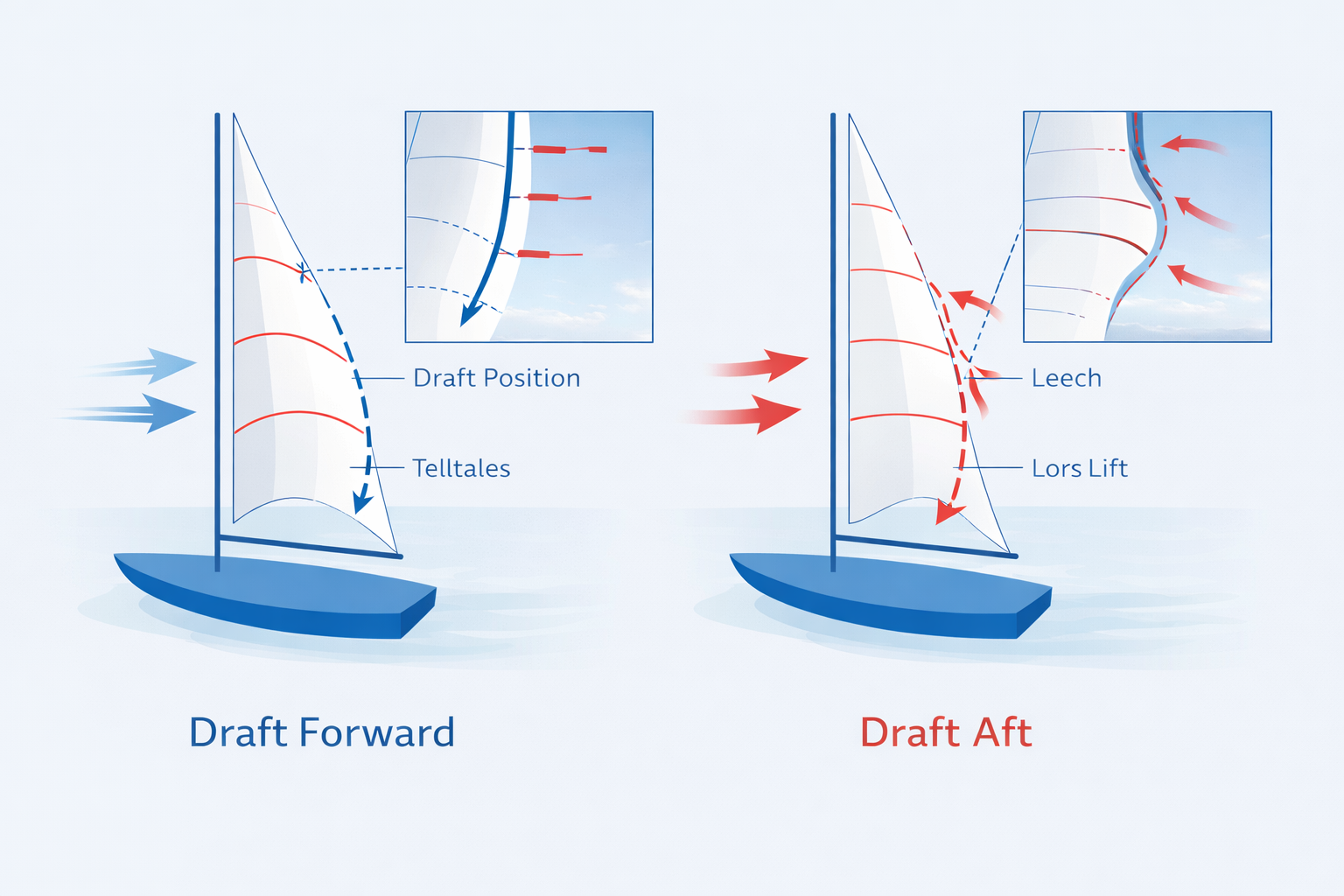

How to Read Sail Shape Without Instruments

Instead of relying on electronics, sailors diagnose trim by watching the sail. It shows both shape and airflow.

Draft stripes show how full or flat a sail is. Look for the deepest curve in each stripe. That curve marks where the sail is fullest.

If the curve sits closer to the back edge of the sail, the draft has shifted aft. When that happens, the boat often develops more weather helm and points less well, since the sail’s pull moves farther behind the mast.

At the same time, telltales reveal airflow. Straight streaming telltales mean air stays attached. When telltales lift or stall, airflow has separated, and speed drops.

Finally, the leech shape links everything together. A leech that curls inward traps air at the top of the sail. The boat feels loaded but doesn’t accelerate. Opening the leech restores airflow and speed.

Core Sail Controls for Shape Adjustment

To manage shape, most cruising boats rely on three main controls: halyard tension, outhaul tension, and mainsheet tension.

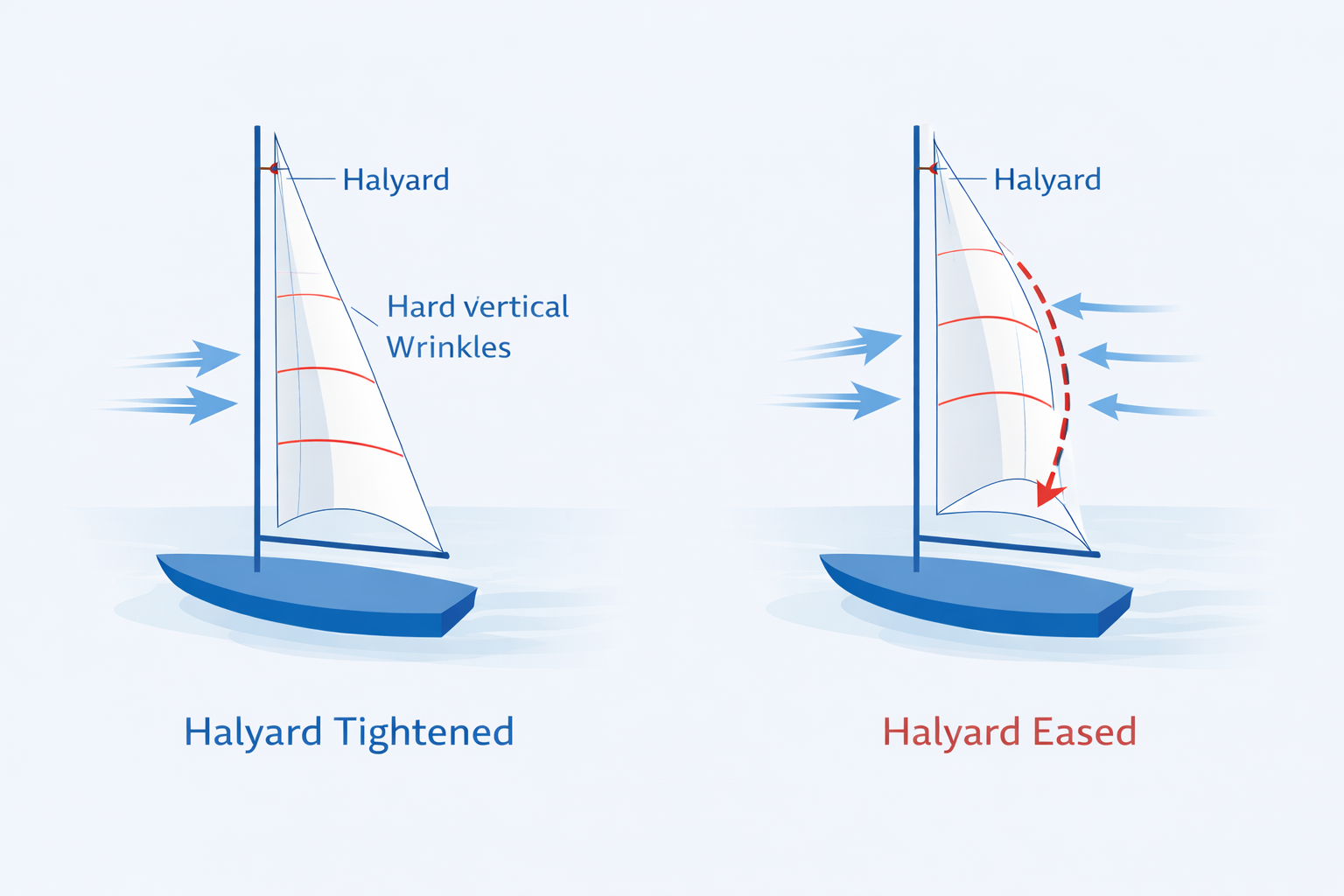

Halyard and Cunningham

Running up the mast, the halyard controls luff tension along the front edge of the sail. Tightening it pulls the draft forward and reduces depth. Easing it lets the draft slide aft and adds depth.

In stronger wind, tighter halyard tension keeps the sail flatter. In lighter air, easing slightly restores shape and pull. When hard vertical wrinkles appear near the luff, tension is too high and needs easing.

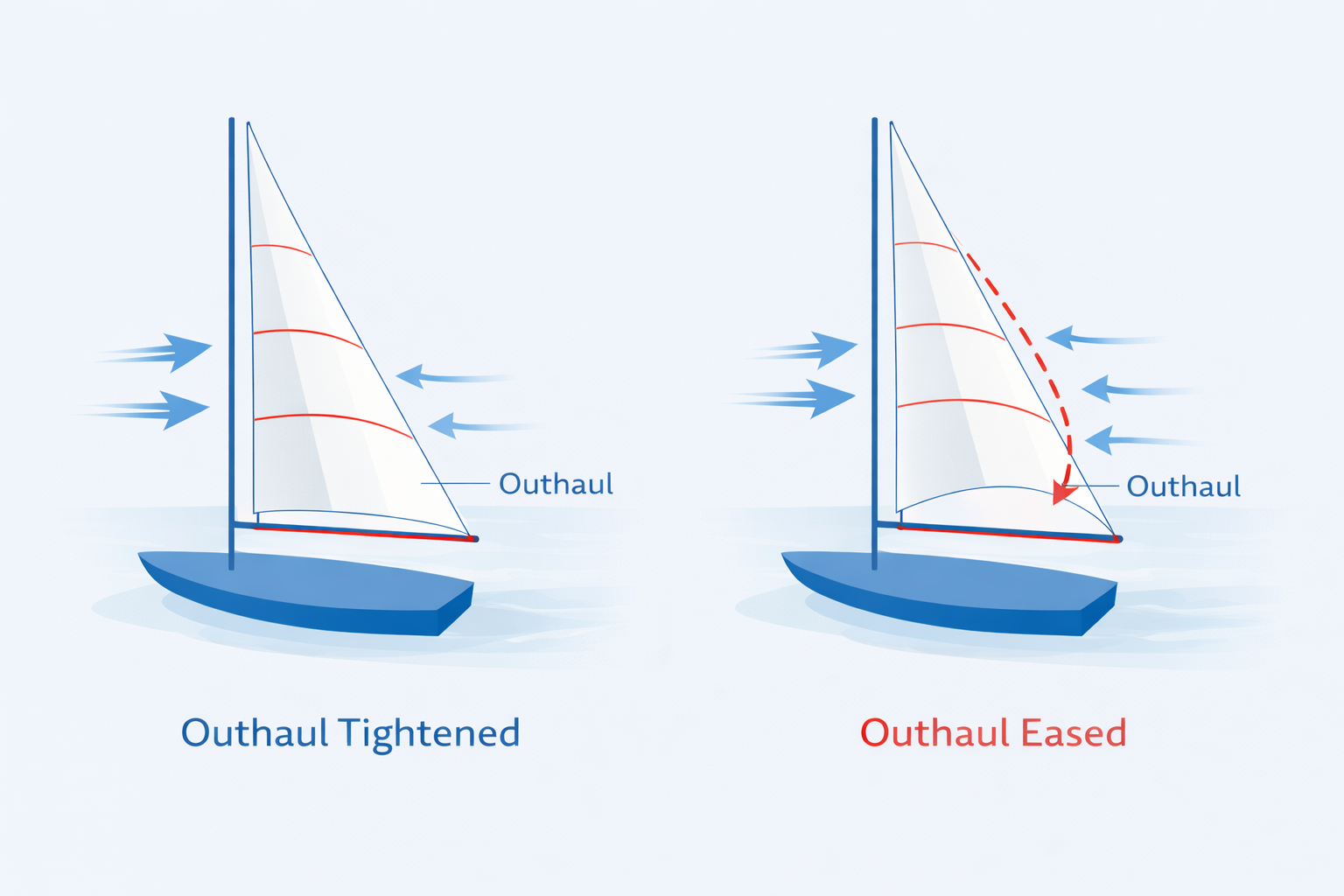

Outhaul

Along the boom, the outhaul controls depth in the lower part of the mainsail. Tightening it flattens the sail, while easing it adds curvature.

By flattening the lower sail, heel and weather helm often decrease since the drag low in the rig drops. When the lower third looks rounded or bowl-shaped, tightening the outhaul often lightens the helm right away.

Mainsheet and Twist Control

Through the boom, the mainsheet controls sail angle and twist. As the boom nears the centerline, extra tension pulls downward instead of inward, changing leech tension and draft position.

With too little twist, the top of the sail stalls and slows the boat without speed. With too much twist, power spills aloft, and pull fades.

For reference, watch the leech telltale. A stalled telltale means the leech is too closed. A constantly spinning telltale means the leech is too open.

Three Most Common Sail Trim Problems (and How to Fix Them)

In day-to-day sailing, most trim issues follow a few familiar patterns.

1. The draft has shifted too far aft

When the draft moves toward the leech, acceleration fades and pointing drops. At the same time, the heel increases and the weather helm builds as force concentrates behind the mast.

Draft stripes reveal this when their deepest curve arcs toward the leech. Tightening the halyard or Cunningham pulls the draft forward and lightens the helm.

2. The sail carries too much depth

With excess depth, early overpower, and heavy heel appear. The lower part of the sail looks rounded and loaded as the breeze builds. Tightening the outhaul flattens the foot, reduces drag, and steadies the boat.

3. The leech has closed, and the top has stalled

When the leech closes, pressure builds without speed. The leech curls inward, and the top telltale disappears.

Easing the mainsheet opens the leech and restores airflow. Off the wind, a boom vang helps keep downward control while the sheet adjusts angle.

How to Trim a Jib for Power and Balance

Upwind, the jib drives performance and strongly affects helm feel. Proper trim depends on halyard tension, lead position, and sheet tension.

Headsail Halyard Tension

At the luff, halyard tension controls draft depth and position in the jib. Added tension flattens the sail and moves the draft forward, which is ideal for stronger wind.

Reduced tension adds depth and supports pull in light air. When hard vertical wrinkles appear near the luff, tension is too high.

Sheet Lead Position

Along the track, the lead position affects how the load spreads from foot to head. Start with a lead aligned from the middle of the luff through the clew.

When the top telltale flutters first, move the lead forward, but when the bottom telltale flutters first, move it aft.

Sheet Tension

Near close-hauled trim, added sheet tension flattens the jib and improves pointing. Too much easing often increases the heel by adding depth. Flatten first, then ease only when balance calls for it.

When Is It Time to Reduce the Sail?

Even with careful trim, there comes a point where sail shape adjustments aren’t enough. When the heavy heel and weather helm continue after flattening both sails and opening twist, it’s time to reef.

On many boats, reducing the headsail area first works well. On others, balance improves sooner when the main reefs are first.

In every case, the target stays the same. A light helm and steady speed. When trim no longer restores that feel, reef sooner rather than later.

Develop Sail Trim Reflexes on Sailing Virgin Courses

Reading this sharpens awareness. Practicing on the water builds instinct that holds when conditions change quickly.

For that reason, immersive liveaboard training speeds learning. Sailing Virgins runs 7-day ASA courses on monohulls and catamarans where trim decisions repeat daily under pressure.

You can adjust sail shape, feel the change at the helm, then adjust again as wind and sea state shift.

• Monohull ASA courses focus on traditional seamanship. You’ll learn to read heels, feel balance through the rudder, and manage the angle of attack as the breeze changes.
• Catamaran ASA courses focus on multihull trim and handling. Stability changes feedback, and precise sail control prepares you for independent chartering.

You’ll train during full sailing days in destinations like the British Virgin Islands, Croatia, and Tahiti. Every adjustment has a consequence you can feel immediately.

If you want sail shape adjustment to become instinct rather than theory, spend a week sailing with the best instructors.
